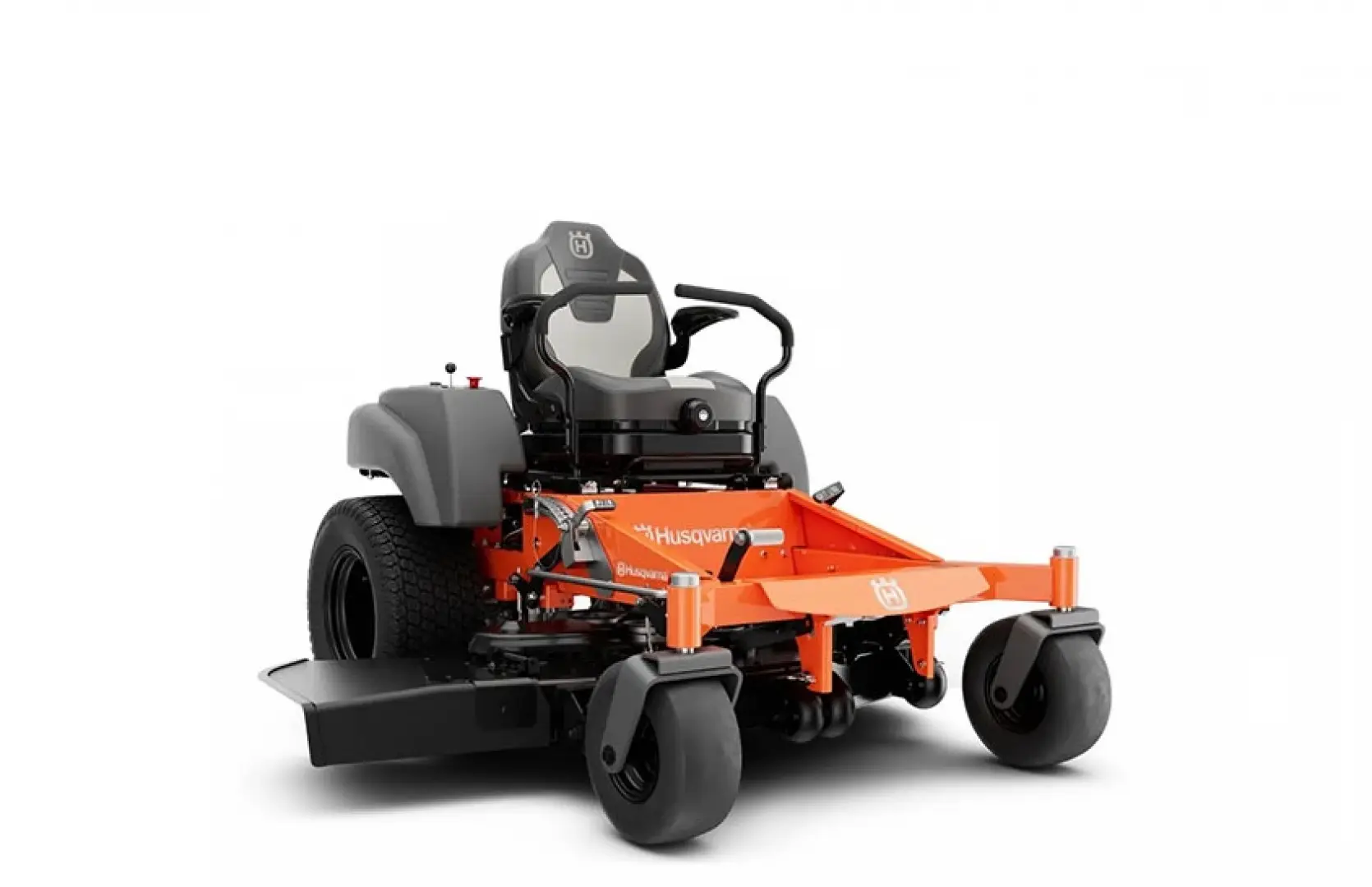

Take performance and comfort to a new level with Husqvarna MZ Series zero-turn mowers. Ideal for large properties, these versatile mowers feature ClearCut™ fabricated decks for superior cutting performance whether discharging, bagging, or mulching. And they’re built to last, thanks to the ultra-durable frame and large, all-terrain tires.
Features
- HEAVY-DUTY KAWASAKI ENGINE: Smooth, quiet and reliable power with heavy-duty components for a long life
- DIAL ADJUSTED SEAT SUSPENSION: Dial adjusted seat suspension gives the user the option to choose their perfect ride with the turn of a dial
- LARGE, ALL-TERRAIN TIRES: 23” tires designed to handle rough terrain
- CLEARCUT™ FABRICATED DECK: Specially-designed deck built for superior cutting performance whether discharging, bagging or mulching
- EASILY ADJUSTABLE CUTTING HEIGHT: Quickly adjust the cutting height with the ergonomic, pedal-assisted cutting deck lift system
- COMFORTABLE, SUPPORTIVE 18″ SEAT: Deep cushions and generous bolsters offer superior comfort and reduced vibrations
- ULTRA-DURABLE FRAME: Rugged frame and wheels ensure durability and long-lasting performance
- EASY-ACCESS SERVICE POINTS: Easily access the oil and filter, hydraulic drive system, electrical system and battery
- COMMERCIAL-GRADE TRANSMISSION: HydroGear ZT3100 transmission delivers increased speed and improved durability?
- REMOVABLE FOOT PAN: Easy access to deck belt pulleys and spindles for quick clean-up
Specifications
General Information
Manufacturer
Husqvarna Power Equipment
Model Year
2026
Model
MZ61 Special Edition 61 in. Kawasaki FR Series 24 hp
Model Code
9708482-01
Color
Orange
Body
Seat
Material – Vinyl
Back height – High
Type – 18 in. high back
Hinged armrests – Standard
Drivetrain
Transmission Make
Hydro-Gear
Transmission Type
Hydrostatic
Travel Speed Forward
Min – 0 mph
Max – 8.5 mph
Wheels/Tires
Anti-scalp wheels – 3
Tire Size
Front width – 6 in.
Front diameter – 6.5 in.
Front diameter wheel – 13 in.
Electrical
Instrumentation
Hour meter type – Digital with pre-programmed service intervals
Hour Meter
Digital with pre-programmed service intervals
Engine
Engine Make
Kawasaki
Engine Model
FR Series
Cooling
Air
Cylinders
2
Horsepower
Engine power (As rated by the engine manufacturer)1 – 24 hp
1Engine Power (As rated by the engine manufacturer): Gross power rating as per SAE J1995, at specified RPM
Displacement
Cylinder – 44.3 ci
Air Cleaner
Air filter type – Auto-type paper
Emissions
Exhaust (CO? EU V)2 – 792 g / kWh
2Exhaust emissions (CO? EU V): This CO2 measurement results from testing over a fixed test cycle under laboratory conditions a(n) (parent) engine representative of the engine type (engine family) and shall not imply or express any guarantee of the performance of a particular engine.
Lubrication
Full pressure with oil filter
Fuel Type
Gasoline
Fuel Capacity
Fuel tank volume (with reserve) – 5 gal.
Fuel tank location – Side (Single)
Hydraulics
Pump Type
Fan-cooled
Measurements
Length
Base machine – 81 in.
Width
Base machine (chute down) – 74 in.
Base machine (chute up) – 63.75 in.
Height
Base machine – 42.5 in.
Weight
770 lb.
Cutting Width
61 in.
Cutting Height
Approximate – 1.5 – 4.5 in.
Steps – 12 steps
Operational
Deck Type
11 ga. fabricated
Deck Material
Steel
Deck Thickness
11 ga.
Deck Lift
Manual, foot assisted
Discharge
Side
Spindles
Cast aluminum
Blades
3 pcs
Blade Brake Clutch
Blade engagement – Electric clutch
Blade Tip Speed
18,500 fpm
Mulching
Yes
Other
Includes
Cutting methods – Collect / Mulch / Side discharge
Greasable mandrels
Nose roller
Cutting deck surface treatment – Powder coated
Oil filter
Cup holder
