Access jobsites where hand labor is your only other option.
Features may include:
- Ultra-compact design
- Retracted 28-inch track width
- Zero tail swing
Overview

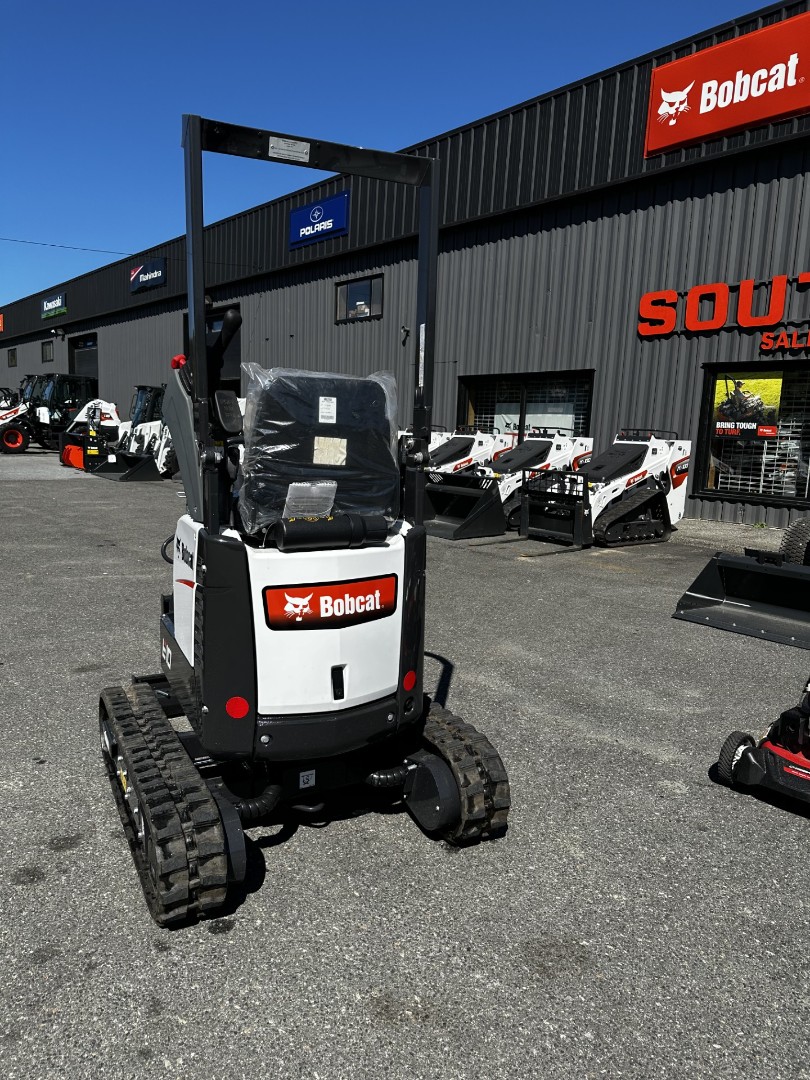

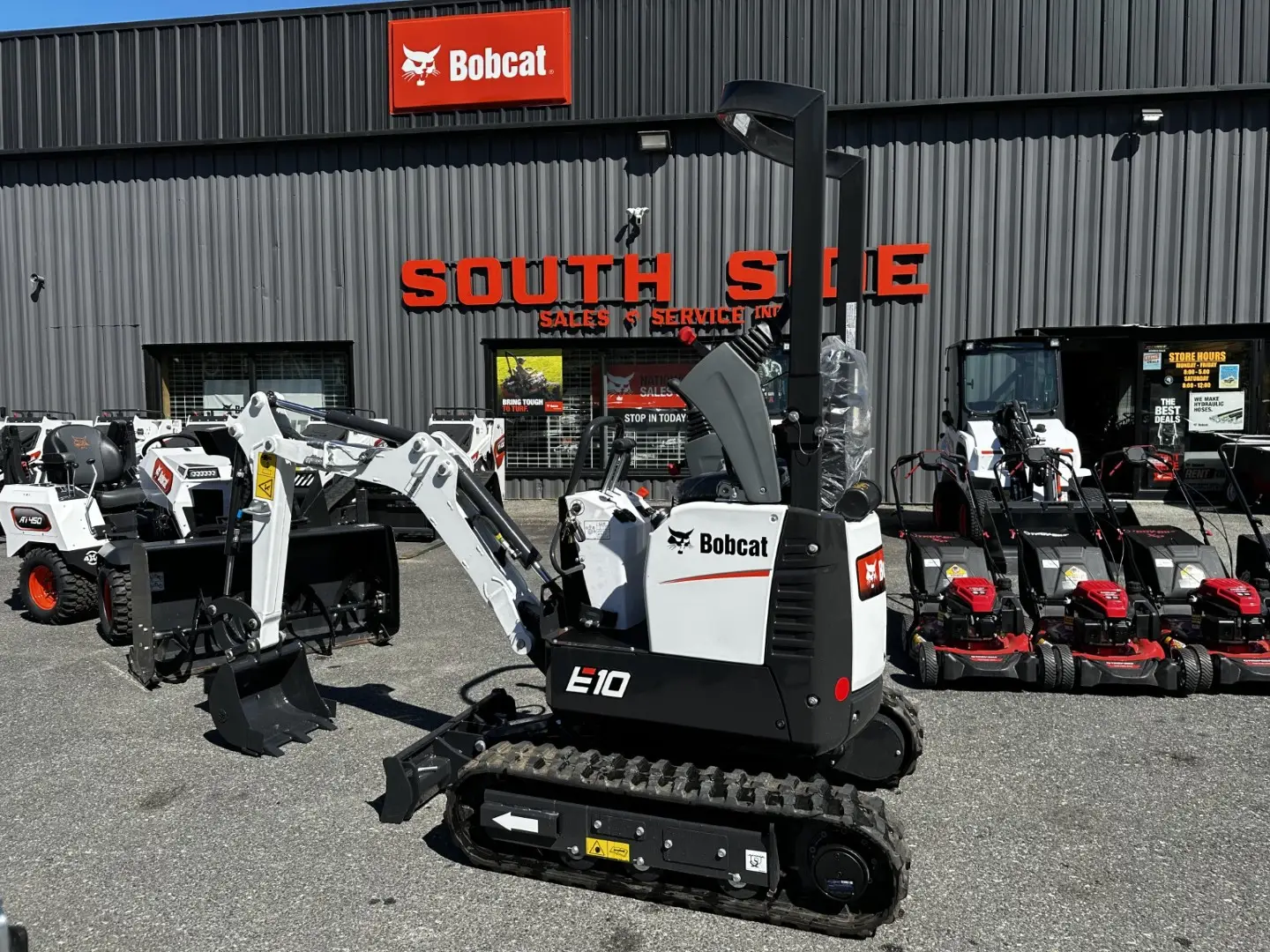

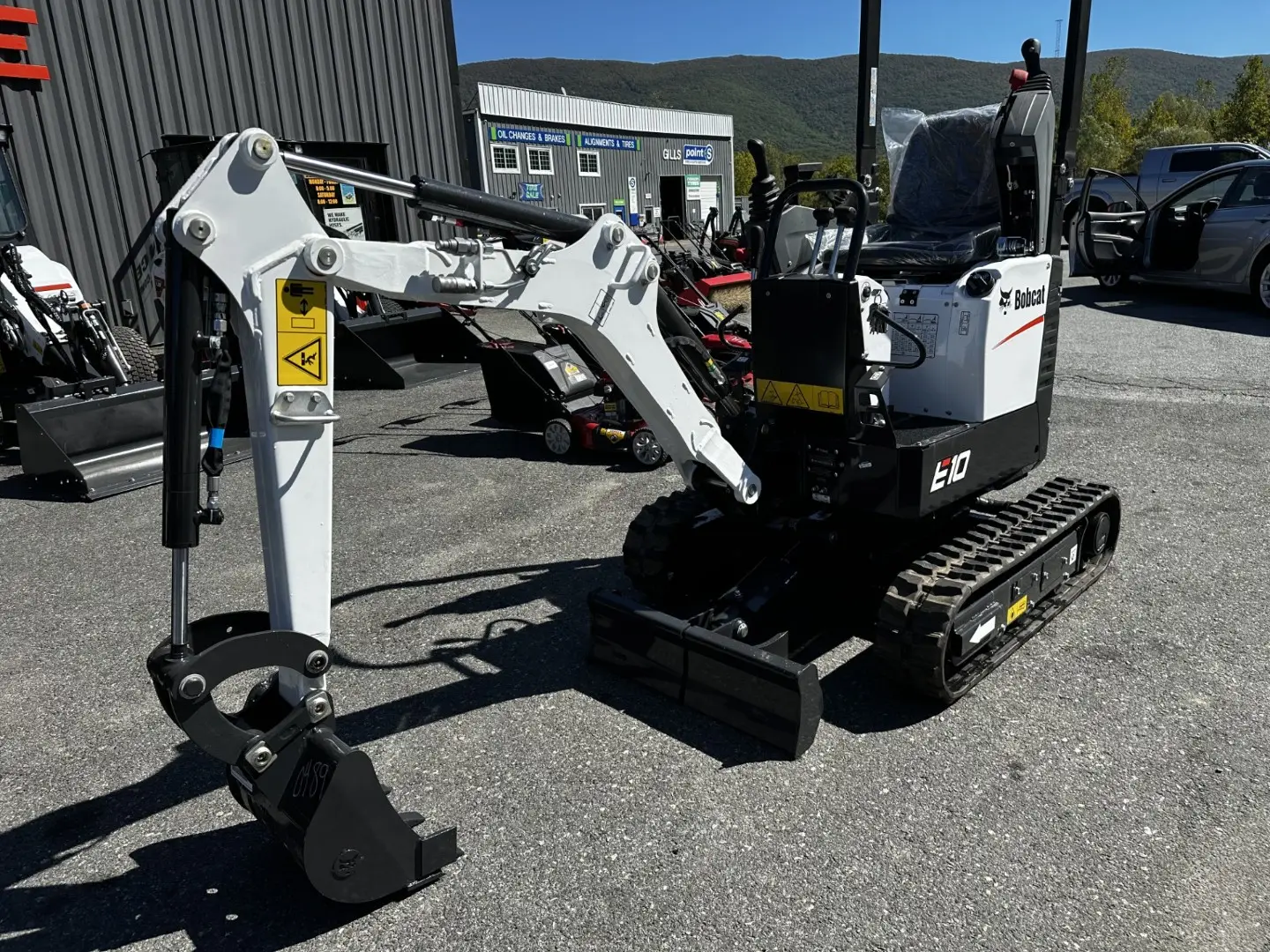

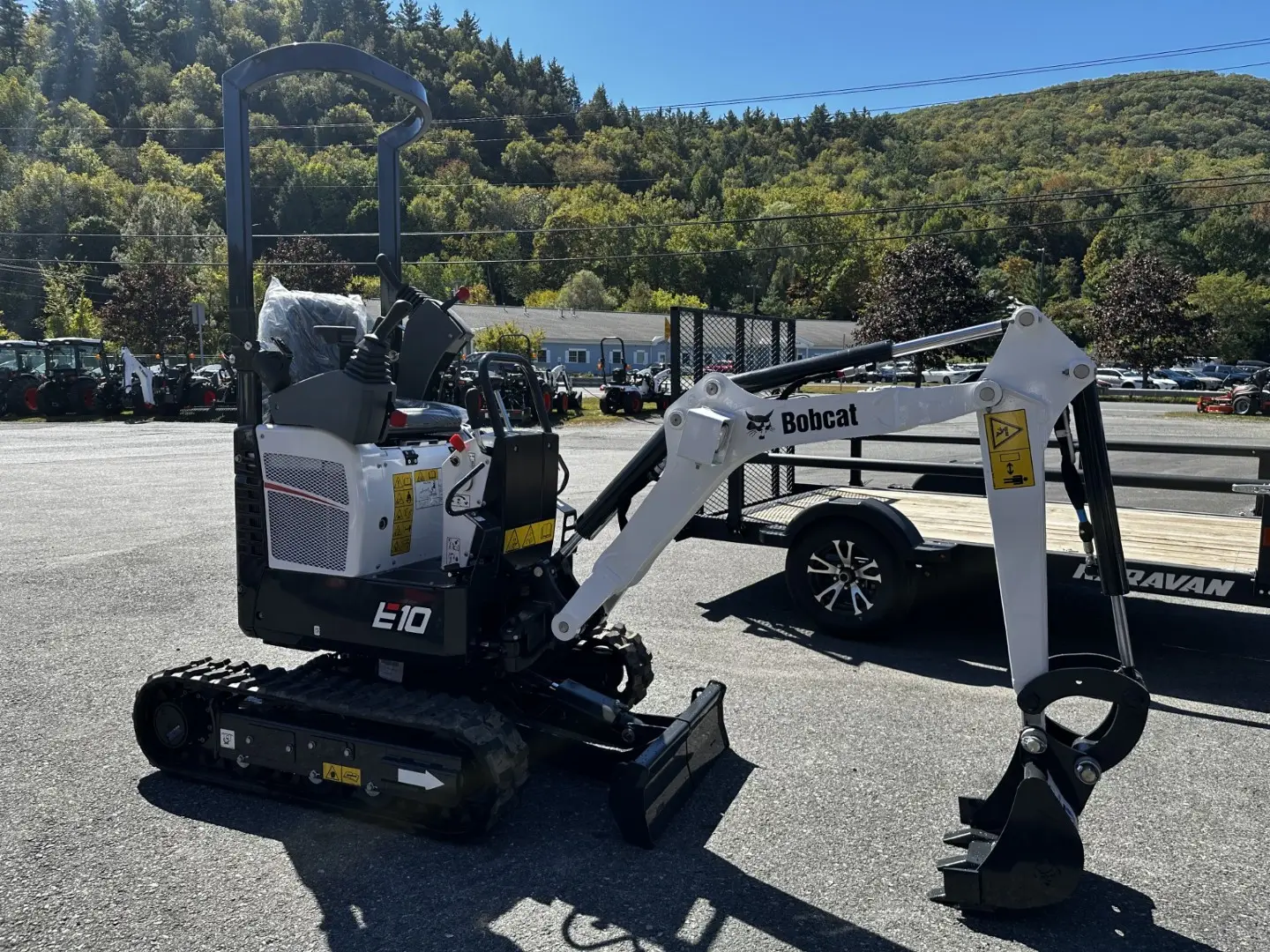

- With a retracted track width of 28 inches, the ultra-compact Bobcat® E10 compact (mini) excavator allows you to easily navigate through narrower openings and operate in tighter conditions.
- Zero tail swing offers the greatest flexibility to slew and deposit spoil while offering the most protection against jobsite obstacles.
- Pass underneath branches, low openings and through doorways to get to your work area.
Engine
Emissions Tier (EPA): Tier 4
Fuel System
Fuel Type Diesel
Operational
Operating Conditions Bucket Digging Force: 1,865 lbf | Arm Digging Force: 1,248 lbf
Operating Speed Maximum Governed RPM: 2,370 rpm | Travel – High: 1.7 mph | Travel – Low 1.3 mph
Hydraulics
Hydraulic Flow Auxiliary Std Flow: 5.3 gal/min
Maximum Pressure Auxiliary: 2,756 psi
Dimensions
Dimensions Maximum Reach at Ground Level: 122.4 in | Lift Radius: 79 in | Boom Swing – Left: 67° | Boom Swing – Right: 64°
Width 28 in
Depth, Maximum Maximum Dig Depth: 72 in
Height Max Dump: 72 in | 87 in | with Operator Cab: 87 in
Length 110 in
Overall Length in Travel Position: 110in
Capacities
Hitch Lift Capacity Rated Lift: 965 lb
Fuel Capacity Tank: 4.2 gal
Weights
Weight, In Running Order Operating: 2,593 lb
Weight Class: 1 t
Features
Features Tail Swing Type: Zero
